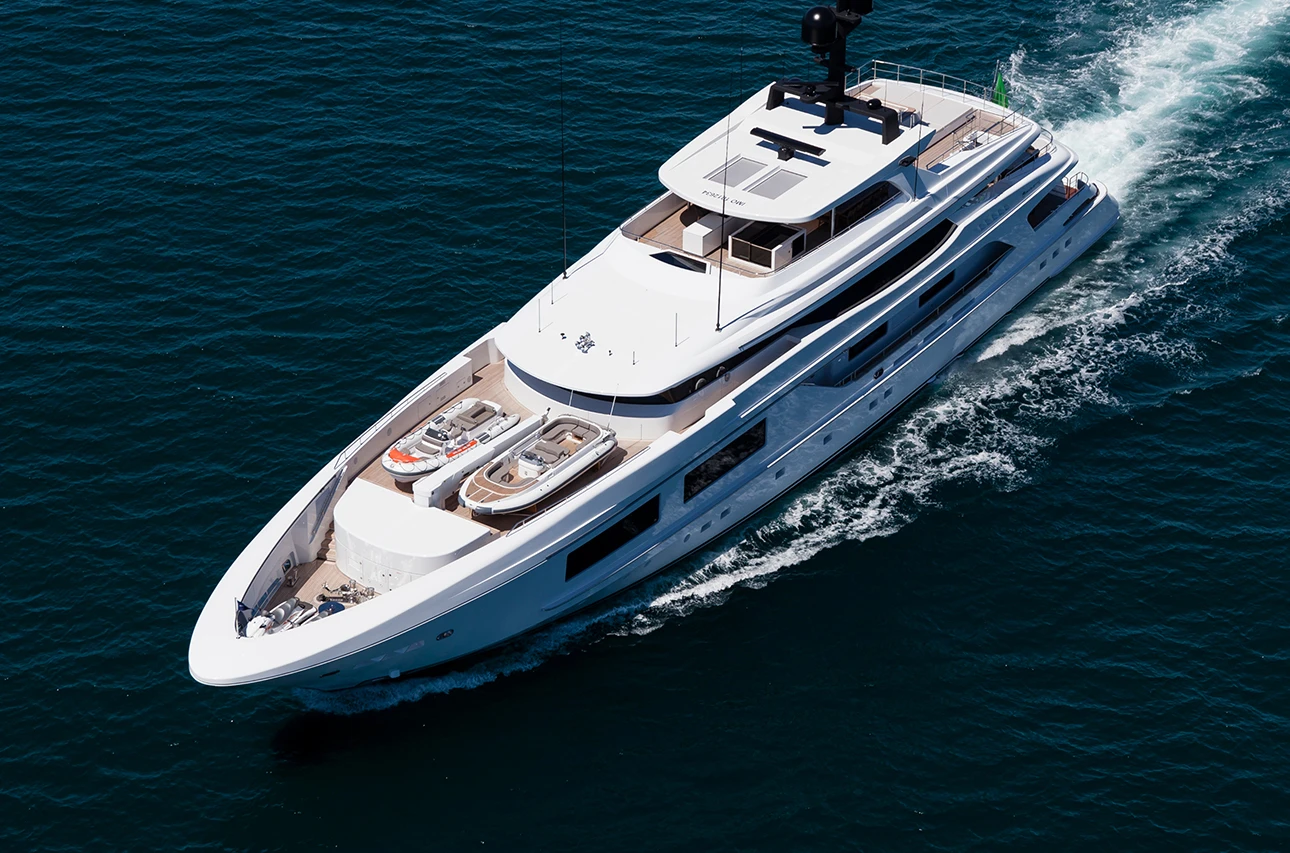

Unicorn

TECHNICAL SPECIFICATIONS

OUTLINE SPECIFICATION

Hull type : Displacement, twin propeller Motor Yacht
Builder: Baglietto S.p.A.
Hull and engineering: Baglietto S.p.A.
Exterior design : F. Paszkowski Design
Interior design : F. Paszkowski Design, Baglietto S.p.a.
Classification: LLOYD’S REGISTER; Unrestricted Navigation MCA LY3 Compliance
Accommodation: Luxury Area: 494 m2/Crew Area: 154 m2

MAIN DIMENSIONS AND FEATURES

Length over all : 53.60 meter
Beam : 10.20 meter
Draft : 3.00 meter
Half load displacement: 630 tons
Fuel capacity : 93,000 liters
Fresh water capacity : 22,000 liters
International gross tonnage : 745 GRT
Guest: 10
Crew: 11
Material of Hull : High tensile steel
Material of Superstructure : Aluminium
Main engines : 2 x Caterpillar 3512C
Maximum power : 2 x 1500 kW at 1,600 rpm
Maximum speed : 16,0 knots
Cruising speed: 12.0 knots
Range at cruising speed up to: 4,500 nm
Generators: 3 x 143 kW, 400/230V 3 phase diesel
Active fin Stabilizers: Anti-roll stabilization system underway and at
anchor
